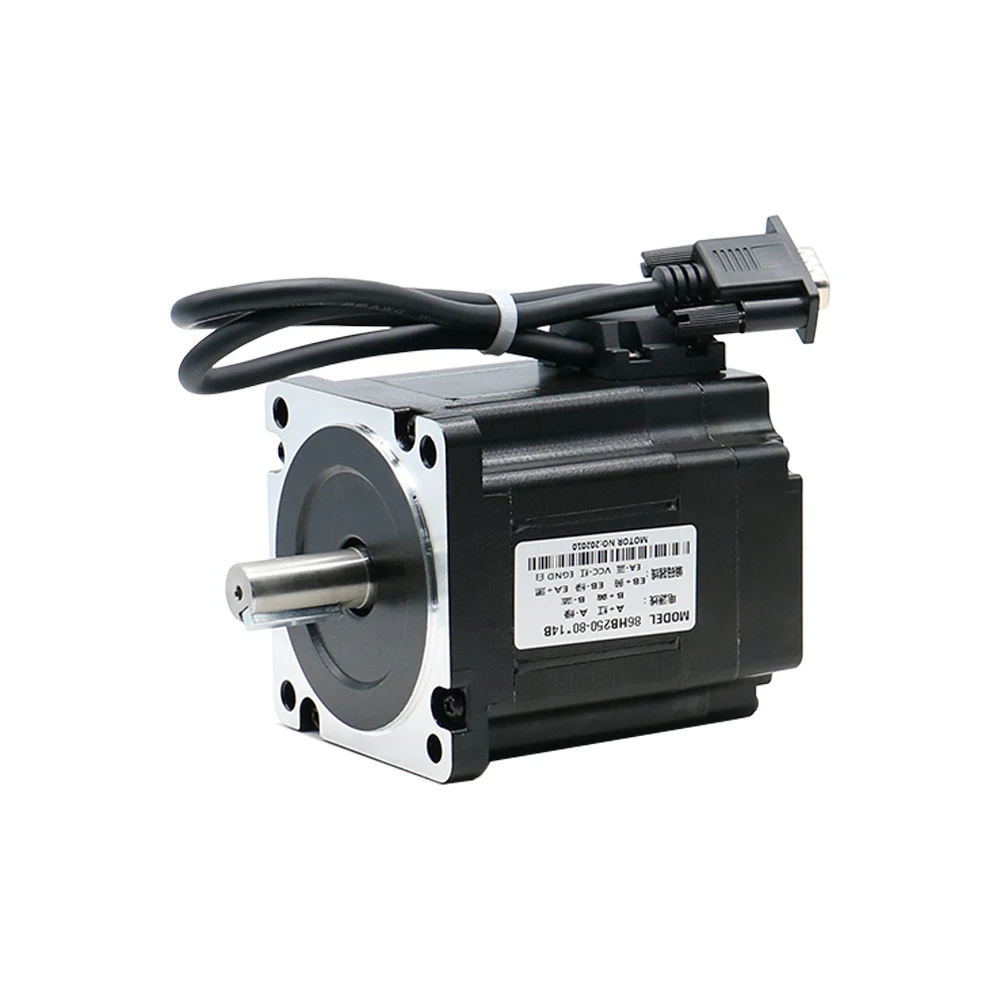

Nema 34 86HB 2 Phase Closed Loop 4.5 8.5 12 Nm Hybrid Servo Stepper Motor With Encoder For CNC Milling Engraving Machine

نطاق السعر: من ⁦$ 214,24⁩ خلال ⁦$ 683,19⁩

MAROC	marocmarocbrazilCHINARussian Federation
Shaft Diameter	14mm
Color	12Nm4.5Nm8.5Nm إزالة

رمز المنتج: 1005004314231521 التصنيف: pièces de rechange Vendor: abdelilah

Packing Content:

1pcs Closed Loop Stepper Motor

1 Pcs 3Meter Encoder Cable

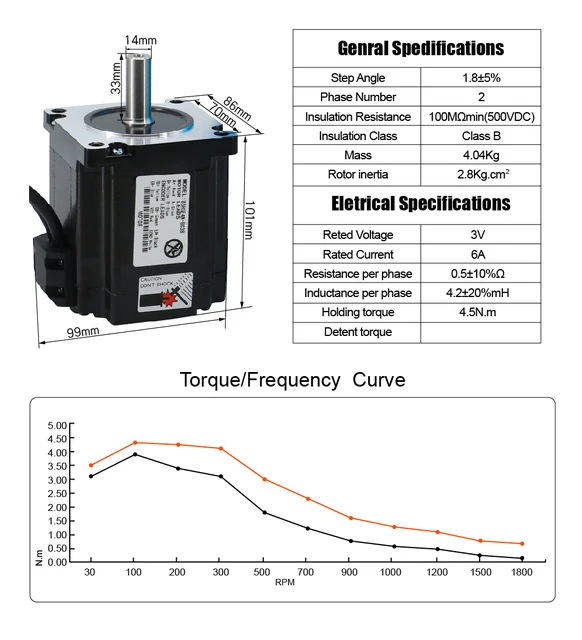

Holding Torque	Step Angle	Motor Length	Shaft Diameter	Shaft Length	Current /Phase	Resistance /Phase	Inductance /pahse	Positioning Torque	Rotor Inertia	Lead Wire	Motor Weight
4.5N.m	1.8	80	14	35	5	0.34	3.2	1300	1400	4	2.8
8.5N.m	1.8	118	14	35	6	0.53	5.4	2500	2700	4	4.15
12N.m	1.8	156	14	35	6	0.72	5.5	4000	4000	4	5

Current / Phase	6a
Holding Torque	4.5/8.5/12Nm
Step Angle(degrees)	1.8°
